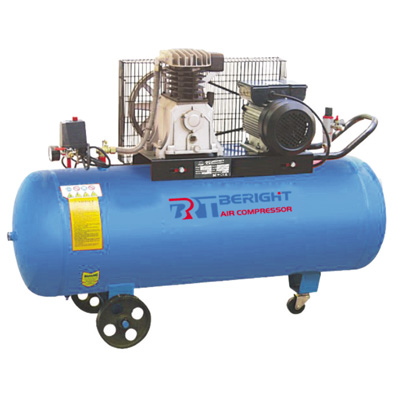

Belt Driven Comrpessor

Model:HA70


Model Power Speed Theoretic Displacement Max Pressure Tank Weight Dimensions

Hp Kw Rpm L/min Cfm Bar Psi L/Gal Kg LxWxH(cm)
HB55 2 1.5 1050 240 8.5 8 115 50/13.2 55 83*42*76
HB55 2 1.5 1050 240 8.B 8 115 100/26.5 71 106*42*83
HA55 2 1.5 1050 180 6.4 8 115 50/13.2 53 83*42*74
HA55 2 1.5 1050 180 6.4 8 115 100/26.5 69 106*42*82
HA65 3 2.2 1050 340 12 8 115 50/13.2 55 83*42*76
HA65 3 2.2 1050 340 12 8 115 100/26.5 71 106*42*83
HA70 3.5 2.5 1050 420 14.8 8 115 100/26.5 71 106*42*83
HA70 3.5 2.5 1050 420 14.8 8 115 150/40 90 134*45*86
HA80 5.5 4 900 580 20.5 8 115 200/53 165 136*56*102
HA80 5.5 4 900 580 20.5 8 115 300/80 220 166*57*108
HA90 5.5 4 900 750 26,5 8 115 200/53 165 136*56*102
HA90 5.5 4 900 750 26.B 8 115 300/80 220 166*57*108
